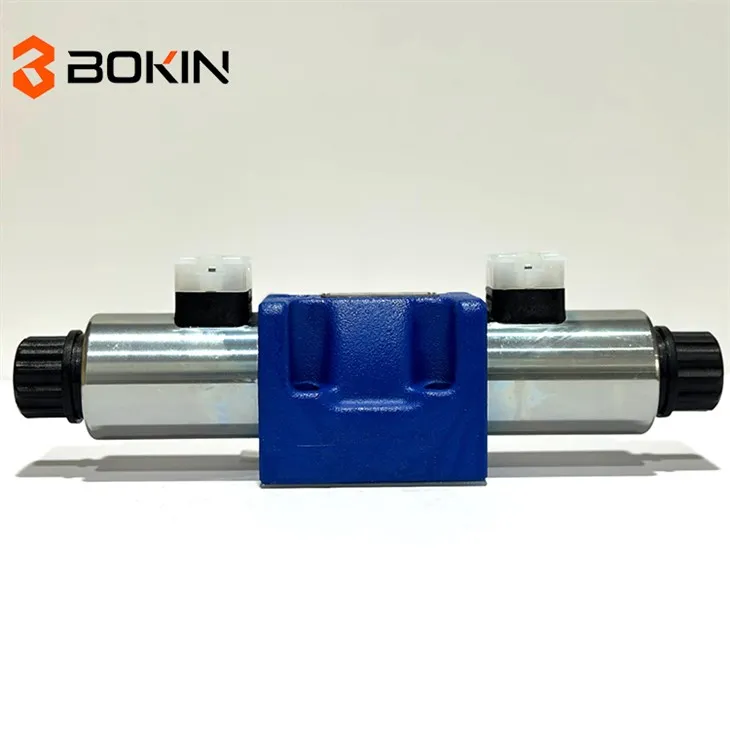

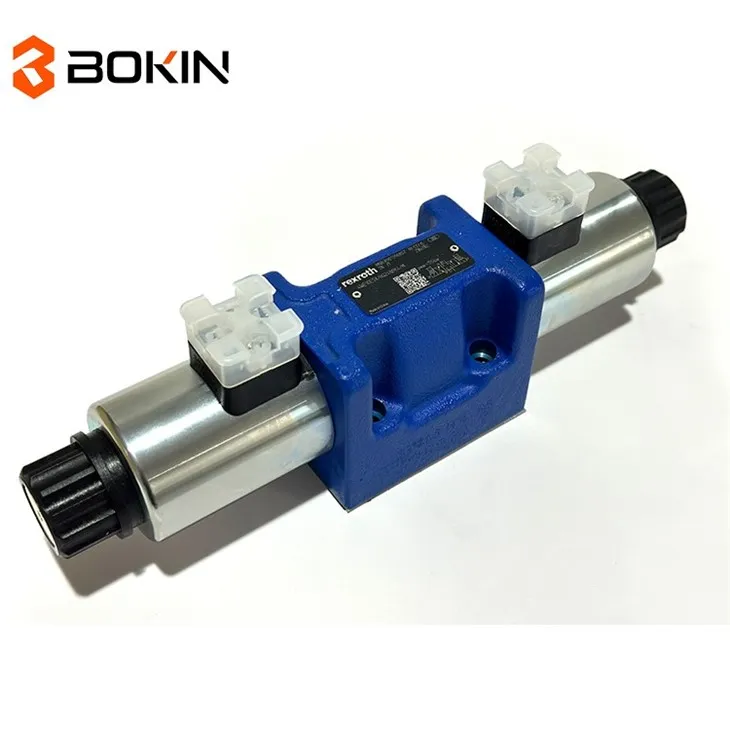

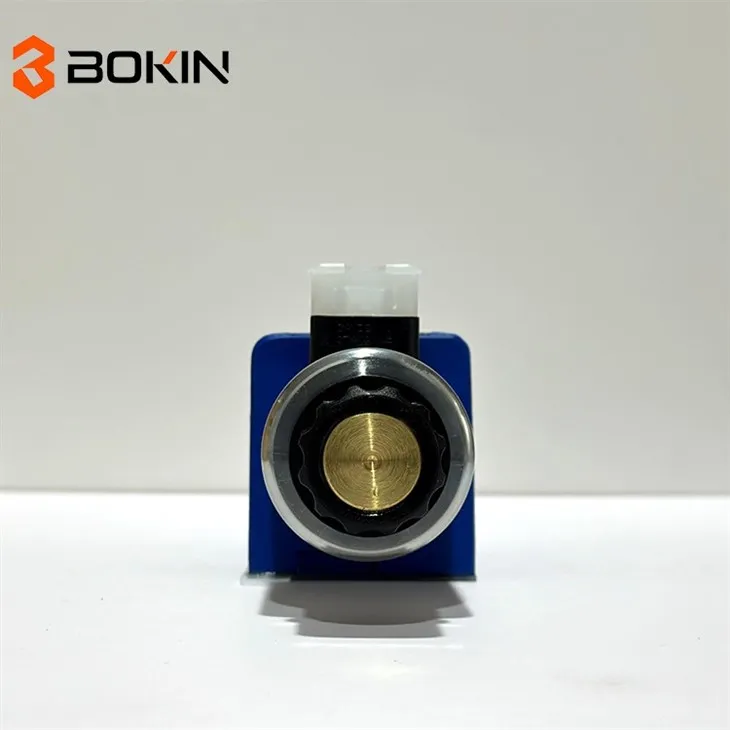

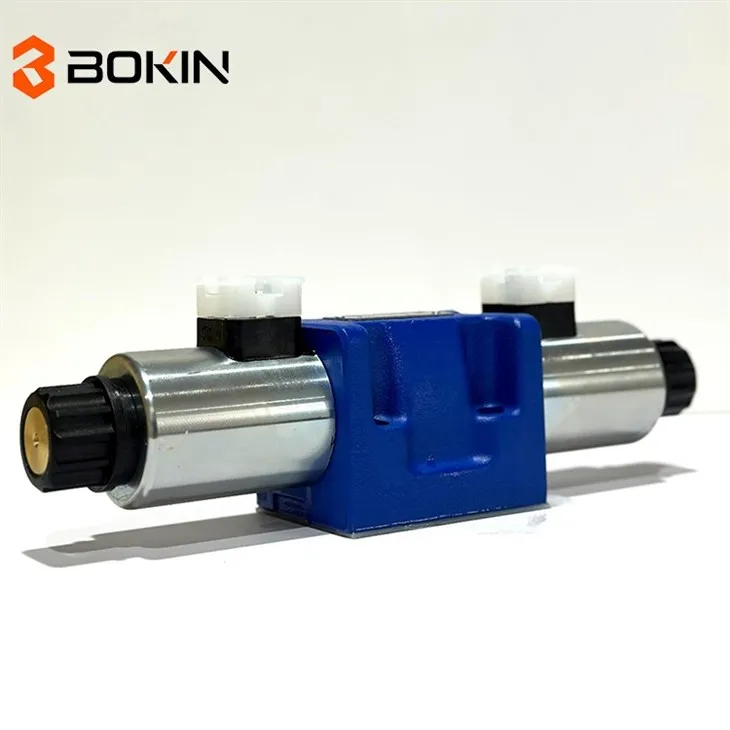

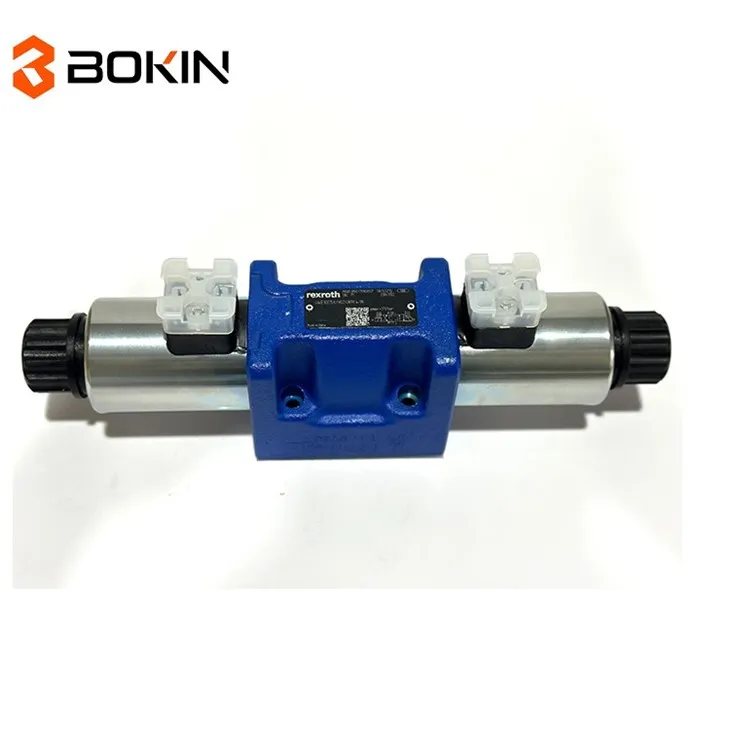

Rexroth 4WE10 5X EG NG10 High-Power Solenoid Directional Valve

A: The primary distinction is platform size and flow capacity. The Rexroth 4WE10 5X EG uses the ISO 4401-05-04-0-05 (NG10) porting pattern with a maximum DC flow of 160 L/min at 350 bar, while the 4WE6 6X operates on the ISO 4401-03-02-0-05 (NG6) pattern at 80 L/min. The 4WE10 5X EG features a 40 W high-power EG solenoid, optional PWM plug-in amplifier for ~40% energy reduction, reinforced spring ("D") and OF detent variants, and MTTFD values of 300–2,400 years. Weight ranges from 3.9–5.5 kg compared to 1.45–1.95 kg for Size 6.

A: The 4WE10 5X EG achieves a maximum DC flow of 160 L/min and AC flow of 120 L/min at a maximum operating pressure of 350 bar (ports A, B, P) and 210 bar T (DC). Choose NG10 when your hydraulic system requires flow rates between 80 and 160 L/min - where NG6 valves would operate at their performance limit with excessive pressure drop, but a Size 16 valve would be unnecessarily oversized and costly. Common NG10 applications include medium-duty industrial presses, injection molding clamp circuits, marine hydraulic systems, and power units driving multiple actuators from a single directional control stage.

A: Yes. The 4WE10 5X EG is compatible with the VT-SSBA1-PWM-1X/V002/5 plug-in switching amplifier (separate order, material no. R901290194). This PWM amplifier reduces nominal coil power by approximately 40% - from 40 W continuous to a significantly lower average holding power - while maintaining ON switching times of 45–60 ms (ISO 6403). The reduced holding current lowers solenoid surface temperature, decreases overall hydraulic system heat load, and extends coil service life. This makes the PWM configuration especially valuable for continuous-duty applications where the valve remains energized for extended periods.

A: Yes. The 4WE10 5X EG is available with a reinforced compression spring (ordering code "D") for accelerated spool return during de-energization, suitable for vertical-axis circuits and safety applications requiring guaranteed return-to-center on power loss. Additionally, the OF detent version (available with symbols A, C, D) mechanically locks the control spool in the selected position without continuous solenoid current, eliminating holding-power consumption during steady-state operation. Both variants are built on the standard NG10 subplate platform with full EG coil serviceability.

A: We provide multiple logistics options - sea freight, air freight, railway freight, road transport, and express courier delivery - allowing buyers to select the mode best matching their destination, timeline, and budget. For urgent replacement orders of popular Rexroth 4WE10 and WE6 directional valves, air freight or express courier service is recommended to minimize equipment downtime.

A: Yes. We support customization of solenoid operating voltage (beyond catalog-standard 24 V DC), connector configuration (K4, M12x1, Junior-Timer, or central connection with indicator lights), and private-label branding - including logo, product code, and custom packaging - subject to minimum order quantity. OEM customers integrating Rexroth 4WE10 5X EG valves into proprietary hydraulic power units or machinery should contact us with their technical specification sheet for a tailored quotation.

A: We maintain inventory of popular Rexroth 4WE10 models for immediate shipment on small to medium orders. Volume orders exceeding 100 units carry a standard lead time of 15–30 days. All Rexroth hydraulic directional valves include a 12-month warranty from the date of shipment, with pre-sales application consultation, in-sales order tracking, and after-sales technical support covering installation, commissioning, and troubleshooting.

A: Each Rexroth hydraulic directional valve undergoes quality verification against its catalog specifications - including flow capacity, switching performance, pressure rating, and electrical parameters - prior to shipment. Samples are available for evaluation before formal orders, subject to order quantity. Backed by a 12-month warranty and our customer-first service commitment, we support long-term supply partnerships with consistent quality assurance throughout the product lifecycle.
