BOKIN 4WRAE Series Proportional Directional Valves
Direct-Operated | Integrated OBE | ISO 4401 Mounting
4WRAE series are independently developed direct-operated proportional directional valves with integrated on-board electronics (OBE) and spring-centered control spool. Designed for precise flow direction and flow rate control in compact hydraulic systems, they match the mounting dimensions, electrical interfaces and hydraulic performance of equivalent Rexroth 4WRAE configurations, supporting straightforward drop-in installation.
Available in NG6 and NG10 nominal sizes, with ±10V voltage and 4-20mA current loop control options, and multiple E/W spool profiles to suit injection molding auxiliary equipment, precision test benches and light-duty industrial hydraulic applications.
Core Specifications：
NG6 / NG10 Sizes | 315 Bar Max Pressure | Up to 75 L/min Flow | Hysteresis ≤ 5% | 12-Month Warranty
-
![4WRAE6 A1 Direct‑Operated Proportional Directional Valve <br>±10V Voltage Control | NS6 Size | Integrated OBE]()
4WRAE6 A1 Direct‑Operated Proportional Directional Valve ...BOKIN 4WRAE6 A1 is a direct‑operated 4/3‑way proportional directional valve with integrated on‑board electronics (OBE). Spring‑centered control spool with proportional solenoid actuation delivers -
![4WRAE6 F1 Direct‑Operated Proportional Directional Valve <br>4‑20mA Current Control | NS6 Size | Integrated OBE]()
4WRAE6 F1 Direct‑Operated Proportional Directional Valve ...BOKIN 4WRAE6 F1 is a direct‑operated 4/3‑way proportional directional valve with integrated on‑board electronics (OBE). Spring‑centered control spool with proportional solenoid actuation delivers -
![4WRAE10 A1 Direct‑Operated Proportional Directional Valve <br>±10V Voltage Control | NS10 Size | Integrated OBE]()
4WRAE10 A1 Direct‑Operated Proportional Directional Valve...BOKIN 4WRAE10 A1 is a direct‑operated 4/3‑way proportional directional valve with integrated on‑board electronics (OBE). Spring‑centered control spool with proportional solenoid actuation delivers -
![4WRAE10 F1 Direct‑Operated Proportional Directional Valve <br>4‑20mA Current Control | NS10 Size | Integrated OBE]()
4WRAE10 F1 Direct‑Operated Proportional Directional Valve...BOKIN 4WRAE10 F1 is a direct‑operated 4/3‑way proportional directional valve with integrated on‑board electronics (OBE). Spring‑centered control spool with proportional solenoid actuation delivers -
![4WRAE Series Direct‑Operated Proportional Directional Valves <br>Integrated OBE | Direct‑Acting | Full Size Range (NS6 – NS10)]()
4WRAE Series Direct‑Operated Proportional Directional Val...BOKIN 4WRAE series are direct‑operated 4/3‑way proportional directional valves with integrated on‑board electronics (OBE). Spring‑centered control spool with proportional solenoid actuation delivers
Featured Product Models
Select the exact configuration for your system, and click to view full details for each model.
|
Model |
Control Type |
Nominal Size |
Max Flow |
Key Feature |
Quick Action |
| 4WRAE6 A1 |
±10V Voltage |
NG6 |
42 L/min | Compact direct-acting, high precision | |
| 4WRAE6 F1 |
4-20mA Current |
NG6 |
42 L/min | Strong anti-interference, stable signal | |
| 4WRAE10 A1 |
±10V Voltage |
NG10 |
75 L/min | Medium-small flow, reliable performance | |
| 4WRAE10 F1 |
4-20mA Current |
NG10 |
75 L/min | Long-distance transmission, heavy-duty |
Not sure which model fits? Send us your working pressure, flow rate and application, and our engineers will recommend the optimal configuration within 24 hours.
Core Advantages of 4WRAE Series
1.Rexroth-Compatible Mounting & Interfaces
Manufactured strictly to ISO 4401 standard mounting dimensions, with identical port positions and electrical pin assignments to equivalent Rexroth 4WRAE valves. Direct drop-in installation requires no manifold modification, rewiring or circuit redesign, greatly reducing retrofit downtime and project costs.
2. Stable Proportional Control Performance
Integrated OBE electronics and spring-centered spool deliver smooth stepless flow regulation with reliable repeatability. Progressive flow characteristics minimize hydraulic impact, ensuring stable speed and pressure control for small precision hydraulic systems.
3. Flexible Configuration for Diverse Scenarios
Multiple spool options (standard E type, overlapped W type) and two control signal types (voltage / current) are available. Custom spool profiles, special connectors and accessory kits can be supplied to match unique circuit requirements.
4. Reliable Quality & Fast Delivery
Every valve undergoes 100% full performance testing before shipment, backed by a 12-month global quality warranty. Standard models are available for fast delivery within 2–4 weeks, supporting both sample testing and bulk production orders.
Rexroth 4WRAE Cross-Reference Guide
| Corresponding Rexroth Model | BOKIN Equivalent Model | Key Specifications |
|---|---|---|
| 4WRAE 6 W30-2X/G24K31/A1V | 4WRAE 6 W30-2X/G24K31/A1V | NG6, 30 L/min, ±10V, integrated OBE |
| 4WRAE 6 W30-2X/G24K31/F1V | 4WRAE 6 W30-2X/G24K31/F1V | NG6, 30 L/min, 4–20mA, integrated OBE |
| 4WRAE 10 W60-2X/G24K31/A1V | 4WRAE 10 W60-2X/G24K31/A1V | NG10, 60 L/min, ±10V, integrated OBE |
| 4WRAE 10 W60-2X/G24K31/F1V | 4WRAE 10 W60-2X/G24K31/F1V | NG10, 60 L/min, 4–20mA, integrated OBE |
Note: This cross-reference table is for configuration reference only. BOKIN valves are independently developed and manufactured products. Please confirm full model specifications with our team before installation to ensure compatibility.
Technical Specifications Overview
| Specification | 4WRAE 6 (NG6) | 4WRAE 10 (NG10) |
|---|---|---|
| Max Operating Pressure (A/B/P ports) | 315 bar | 315 bar |
| Max Operating Pressure (T port) | 210 bar | 210 bar |
| Max Flow | 42 L/min | 75 L/min |
| Rated Flow (Δp = 10 bar) | 7 – 26 L/min | 30 – 60 L/min |
| Supply Voltage | 24 VDC (19 – 36 VDC range) | 24 VDC (19 – 36 VDC range) |
| Control Interface | ±10 V (A1) / 4 – 20 mA (F1) | ±10 V (A1) / 4 – 20 mA (F1) |
| Dynamic Response Time | < 80 ms | < 240 ms |
| Hysteresis | ≤ 5% | ≤ 5% |
| Response Sensitivity | ≤ 0.5% | ≤ 0.5% |
| Mounting Standard | ISO 4401-03-02-0-05 | ISO 4401-05-04-0-05 |
| Protection Class | IP65 (correctly mounted connector) | IP65 (correctly mounted connector) |
| Ambient Temperature | -20°C to +50°C | -20°C to +50°C |
| CE Compliance | MD 2006/42/EC, EN ISO 12100:2010 | MD 2006/42/EC, EN ISO 12100:2010 |

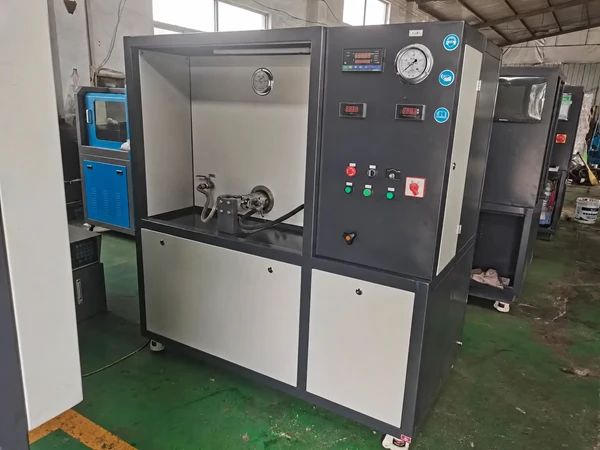

Typical Applications of 4WRAE Valves
OEM & Customization Support
We provide flexible OEM and customization services for global distributors, system integrators and equipment manufacturers:
- Custom spool flow characteristics and special circuit designs
- Custom control interfaces and electrical connector types
- Private label logo and nameplate printing
- Custom packaging and product labeling
MOQ for custom branding is flexible. Contact our sales team for detailed OEM cooperation solutions.
Quality & Certification
All BOKIN proportional valves are manufactured under strict process control and fully tested before shipment. Our products hold CE verification in compliance with relevant European directives and standards.
- Certificate No.: ICR/VC/HM2601135
- Standard: MD 2006/42/EC, EN ISO 12100:2010
- Valid until: January 15, 2031
FAQ
Need a Quote or Technical Support?
Send us your required model, quantity and application details, and our hydraulic specialists will get back to you within 24 hours with a formal quotation and professional recommendations.
