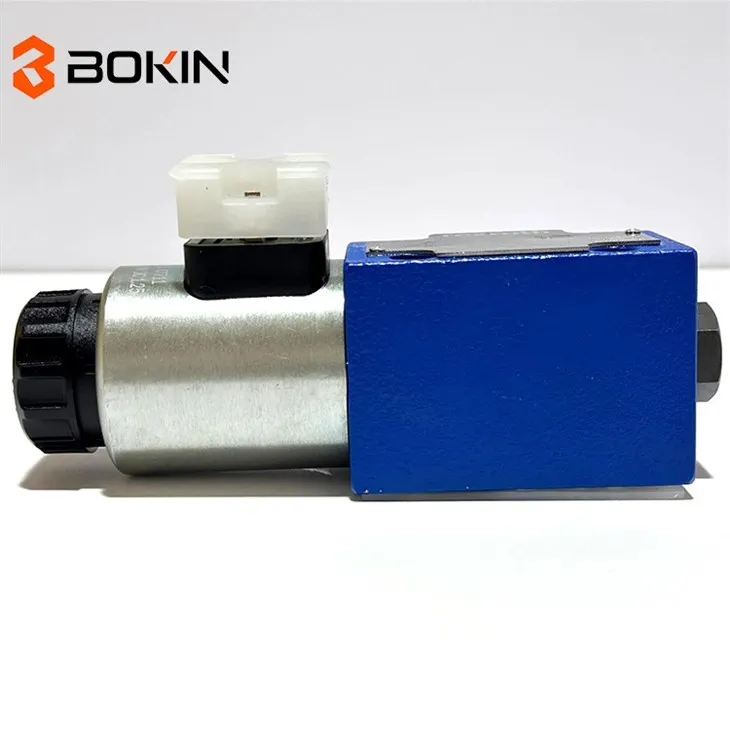

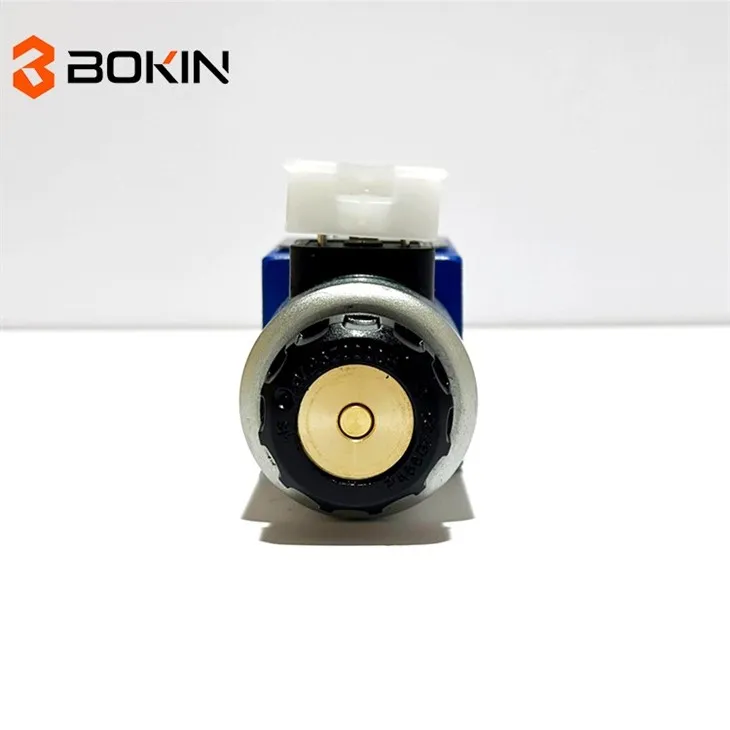

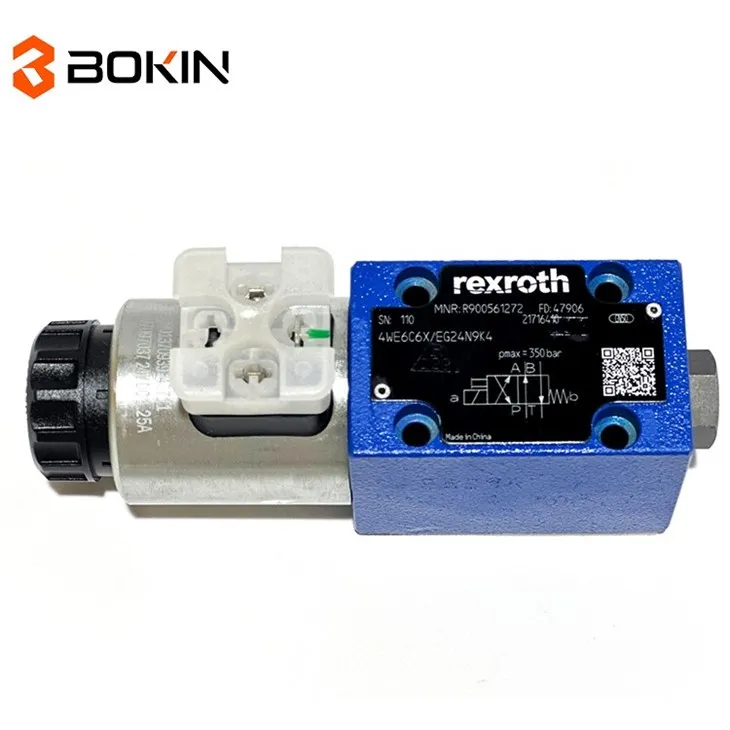

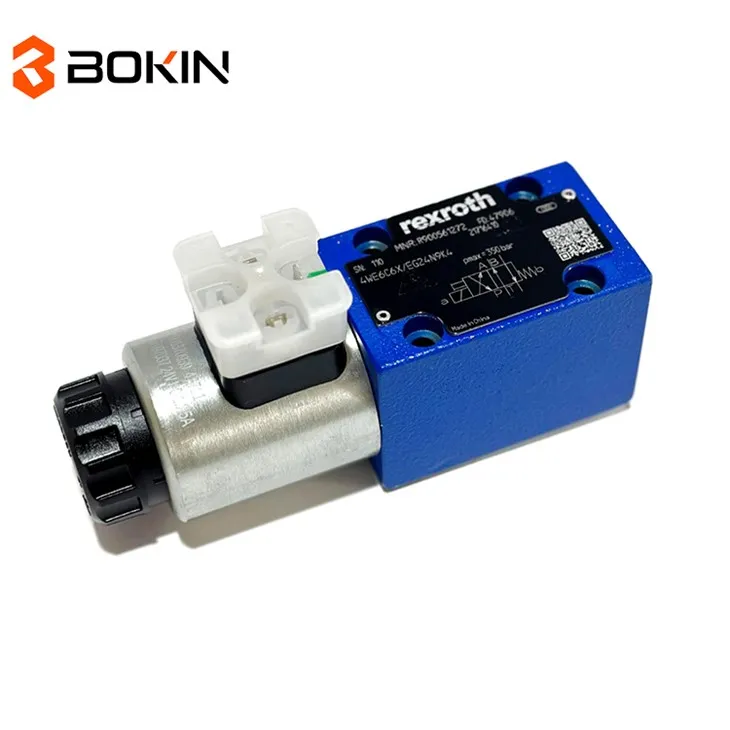

Rexroth 4WE6 6X EG High-Power Solenoid Directional Valve

A: The Rexroth 4WE6 6X EG (Component Series 6X) features a high-power detachable EG iron coil with 30 W nominal power, whereas the 1X series uses a sealed HG encapsulated coil at 28 W. Key upgrades in the 6X EG include dual AC/DC voltage compatibility (12–220 V DC and 100–230 V AC 50/60 Hz), a 300-year MTTFD value (double the 1X benchmark), optional spool position monitoring, throttle insert functionality, smooth-switching variants (.73…A12), and corrosion protection options (J3/J5). Both series share the same Size 6 NG6 platform, ISO 4401-03-02-0-05 mounting, and 350 bar pressure rating.

A: Yes. The Rexroth 4WE6 6X EG hydraulic directional valve uniquely supports both AC 50/60 Hz (100, 110, 120, 200, 230 V) and DC (12–220 V) supplies on a single valve platform - no separate rectifier module required for the DC version. Connector options span the standard 3-pole K4 per DIN EN 175301-803 (IP65), Deutsch DT04-2PA (IP69K), M12x1 (IP65), Junior-Timer (IP66), and central-connection variants with built-in indicator lights. For AC operation, rectifier accessories are available separately.

A: Yes. The EG designation indicates a field-detachable iron-encapsulated coil that can be replaced without opening the hydraulic pressure chamber - simply remove the mounting nut, swap the coil, and reassemble. The coil is optionally rotatable by 90° for flexible cable routing. Combined with the wet-pin architecture (plunger lubricated and cooled by the hydraulic fluid itself), this reduces both planned maintenance downtime and the cost of coil replacement compared to fully sealed designs that require complete valve disassembly.

A: Absolutely. The Rexroth 4WE6 6X EG supports optional spool position monitoring for real-time PLC feedback on valve state. The ".73…A12" smooth-switching variant reduces switching shock - measured as acceleration - by up to 85% versus the standard valve, making it suitable for precision machinery where hydraulic impulse must be minimized. An integrated throttle insert is also available to manage flow peaks during switching transients. For corrosive environments, J3 and J5 surface protection options extend housing service life.

A: We offer multiple transport solutions including sea freight, air freight, railway transport, road freight, and express courier delivery. Buyers may select the preferred mode according to destination, urgency, and budget. For time-critical replacement orders of Rexroth WE6 directional valves, air freight or express delivery is recommended to minimize production downtime.

A: Yes. We support customization of solenoid operating voltage (beyond the standard catalog voltages), connector type, and private-label branding - including logo, product code, and custom packaging - subject to minimum order quantity. For OEM customers integrating Rexroth 4WE6 6X EG valves into proprietary hydraulic systems, please contact us with your technical specification sheet for a tailored quotation.

A: We maintain sufficient stock of popular Rexroth WE6 models for immediate dispatch on small to medium orders. Volume orders exceeding 100 units carry a standard lead time of 15–30 days. All Rexroth hydraulic directional valves include a 12-month warranty from the date of shipment, backed by pre-sales technical consultation, in-sales order tracking, and after-sales support covering installation guidance and troubleshooting.

A: We adhere to rigorous quality inspection protocols for all Rexroth hydraulic directional valves. Each unit is verified against its catalog specifications - including pressure rating, switching performance, and electrical parameters - prior to shipment. Samples are available before formal orders, subject to order quantity. Combined with our 12-month warranty and customer-first service philosophy, we are committed to long-term supply partnerships.
