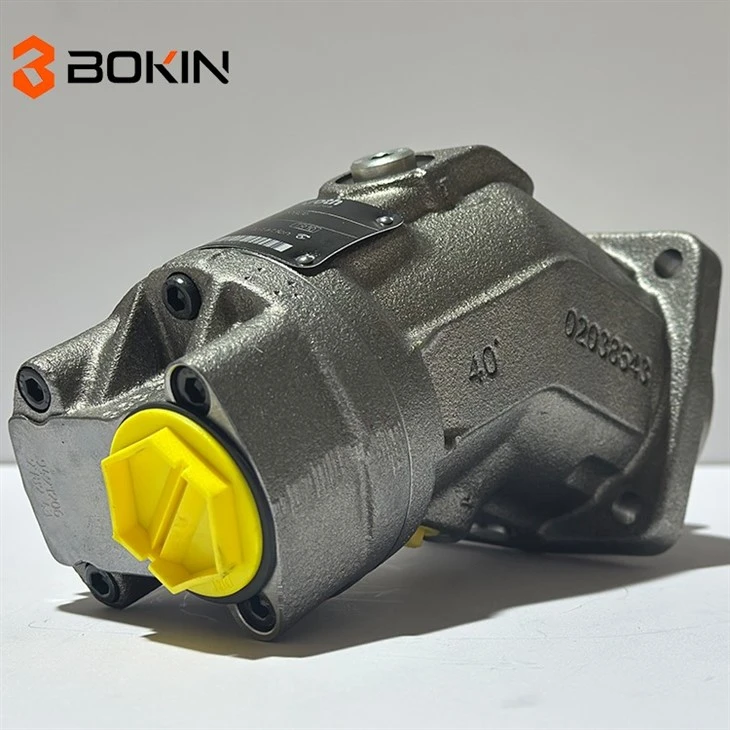

Rexroth Type Axial Piston Pump A2FO 16 Fixed Displacement

Bokin Electro-Hydraulic Technology (Foshan) Co., Ltd. is one of the leading manufacturers and suppliers of rexroth type axial piston pump a2fo 16 fixed displacement in China. If you're going to wholesale bulk durable rexroth type axial piston pump a2fo 16 fixed displacement made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

▶ Series 6

▶ Size 16

▶ Nominal pressure / Maximum pressure: 400 / 450 bar

▶ Open circuit

▶ Fixed pump with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in an open circuit

▶ For use in mobile and stationary applications

▶ The flow is proportional to the drive speed and displacement

▶ The drive shaft bearings are designed for the bearing service life requirements usually encountered in these areas

▶ High power density

▶ Small dimensions

▶ High total efficiency

▶ Economical design

▶ One-piece tapered piston with piston rings for sealing

• Breakthrough Torque Threshold The A2FO16 is the first size in the Series 6 lineup to exceed 100 Nm, delivering 102 Nm of torque at 400 bar - a 34% jump from the NG12 variant (76 Nm). This threshold-crossing performance opens the door to heavier-duty actuation tasks such as wheel-drive circuits and multi-axis machine tools, without requiring a step up in pump frame size.

• Flow Ceiling Within the 6 kg Class At 50 L/min nominal flow, the A2FO16 produces 56% more output than the NG12 (38 L/min) while occupying the same 6 kg envelope. For system designers working within strict weight budgets - such as aerial platforms, mini-excavators, and agricultural implements - this represents the maximum available flow before the mass increases to 9.5 kg at NG23.

• Consolidated Drive Shaft Configuration Unlike the NG10 and NG12, which offer dual drive shaft diameter options (ø20 and ø25), the A2FO16 is specified with a single ø25 mm shaft. This consolidation reflects an optimized load-path design: the larger shaft diameter is necessary to handle the elevated 102 Nm torque, and removing the undersized ø20 option eliminates a potential misapplication risk in the field.

• Enhanced Internal Thermal Management The A2FO16 features a 0.20 L case volume - an 18% increase over the NG10 and NG12 (0.17 L). This additional internal oil volume improves heat dissipation and lubrication film stability under sustained high-load duty cycles, contributing to longer bearing service life in continuous-operation scenarios such as conveyor drives and process machinery.

▶ Which payment terms are available for bulk orders?

For bulk quantities, a 30% advance payment is required with the balance due 7 days prior to dispatch. We also accommodate Alibaba Trade Assurance and L/C for qualified buyers.

▶ Can I request a sample before placing a formal order?

Yes, samples can be provided for evaluation. Availability and pricing depend on the specific model and order context - please contact us for details.

▶ What shipping methods are supported?

We arrange delivery via sea, air, rail, or express courier based on your timeline and destination. Sea freight is the most economical for heavy hydraulic components.

▶ What drive shaft options are available for the A2FO16?

The A2FO16 is equipped with a ø25 mm drive shaft, available in splined (DIN 5480 W25×1.25×18×9g) or parallel keyed (DIN 6885 AS8×7×32) configuration.

▶ What is the case drain volume of the A2FO16?

The internal case volume is 0.20 L. The maximum permissible case drain pressure is 2 bar absolute under continuous operation.
