Bokin Electro-Hydraulic Technology (Foshan) Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic axial piston pump a4vso125 dr direct control in China. If you're going to wholesale bulk durable hydraulic axial piston pump a4vso125 dr direct control made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Product Parameters
▶ Robust high-pressure pump for industrial applications
▶ Size 125
▶ Nominal pressure 350 bar
▶ Maximum pressure 400 bar
▶ Open circuit
Features
▶ Variable displacement pump with axial piston rotary group of swashplate design for hydrostatic drives in open circuit
▶ Flow is proportional to the drive speed and displacement.
▶ The flow can be continuously changed by adjusting the swashplate.
▶ Excellent suction characteristics
▶ Low noise level
▶ With pre-compression volume for pressure pulsation reduction
▶ Nominal pressure 380 bar / maximum pressure 420 bar for selected control devices with port plate 36.
▶ Long service life
▶ Modular design
▶ Variable through drive options
▶ Optical swivel angle indicator
▶ Any installation position possible
▶ Suitable for variable-speed drives
▶ HF operation with reduced data possible for HFC operation, special version available

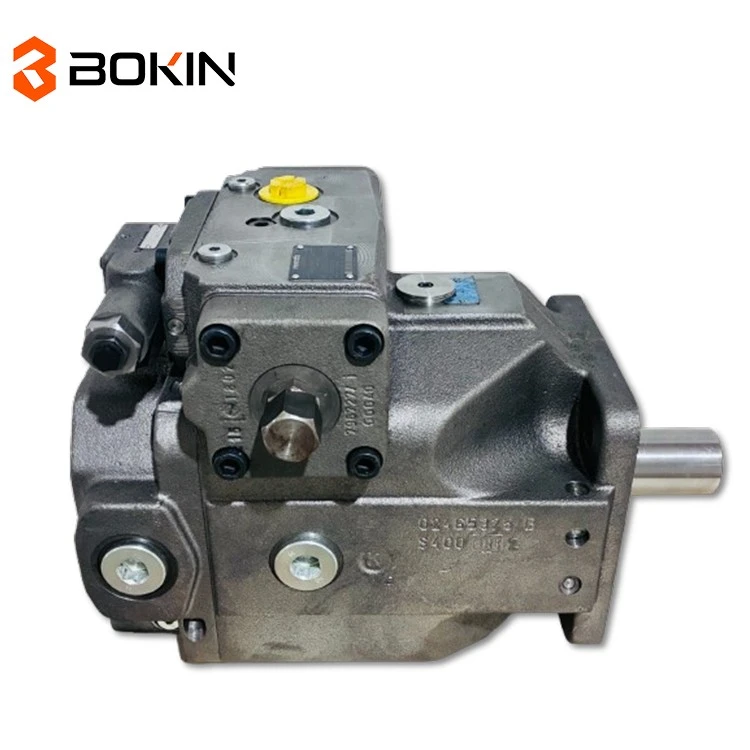

Hydraulic Axial Piston Pump A4VSO125 DR Direct Control Complete Model
A A4VSO 125 DR/30R-PPB13N00
Technical Specifications
|
Available Size |
A4VSO40 |
A4VSO71 |
A4VSO125 |
A4VSO180 |
A4VSO250 |
|
Series |
1X |
||||
|
Nominal Pressure |
350 / 380 bar |
||||
|
Maximum Pressure |
400 / 420 bar |
||||
Product Advantages
Core Positioning
Heavy-duty axial piston pump integrated with Rexroth's DR direct pressure control, engineered for mid-range hydraulic systems handling high loads. Its robust construction and precision pressure regulation deliver consistent performance in industrial environments where reliable pressure management is critical.
Key Performance & Control Traits
Geometric displacement of 125 cm³/rev, nominal speed of 1800 rpm. At full displacement, it generates 225 l/min rated flow (max 870 l/min) and 131 kW power output (Δp=350 bar). The DR controller limits outlet pressure to 350 bar (adjustable 50–350 bar), automatically reducing displacement when system pressure exceeds the setpoint, with pressure deviation held to ≤3 bar for stable operation.
Direct Control Advantages
In depressurized state, it defaults to maximum displacement (Vg max), with mechanical stops setting Vg min to 15–20 bar (when port B is plugged) and Vg max to nominal capacity. The 0.3 s swivel time (Vg min→Vg max) ensures rapid response to pressure fluctuations, while the modular design allows easy integration of auxiliary valves (e.g., pressure relief valves) for enhanced system protection.
Structural & Installation Robustness
Weighs 88 kg with an ISO 3019-2 4-hole flange (Ø160). SAE J518 ports (2.5 in suction, 1.25 in pressure) feature M12×1.75 and M14×2 metric threads. Through-drive compatibility enables A4VSO+A4VSO combination pumps, creating independent circuits without the need for splitter gearboxes. The M33×2 R(L) drain port must be connected to the reservoir, with shared drain lines requiring proper sizing to avoid case pressure overload.
Durability Features
High rotary stiffness (260 kNm/rad at shaft end P) ensures stability under heavy loads, while compatibility with mineral oils and flame-resistant fluids (HFC/HFDU) expands application scope. Requires hydraulic fluid cleanliness of ISO 4406 17/15/12 (pilot valve) to prevent contamination-related faults, and withstands 1600 N maximum radial force and 1000 N axial force for long-term reliability.
Industry Applications
Designed for large hydraulic power units, heavy industrial presses, steel mill auxiliaries, and forging machinery. Excels in material handling cranes, industrial mill hydraulics, and construction equipment attachments where direct pressure control and heavy-duty variable displacement performance are required.
Our Advantage
CORE TECHNOLOGY
20+ years R&D experience, industry expert-led, independent IP rights
CORE IP PRODUCT
4WREE, 4WRKE, 4WRJE, 4WRLE, 4WRPEH, etc
OUTPUT
Proportional valve monthly output >10000+ pieces
BRAND
100% independent proportional valve brand, supporting brand customization
CUSTOMIZED ELECTRO-HYDRAULIC SYSTEM SOLUTIONS FOR ALL APPLICATIONS
Integrating core component development, system design and customized Implementation Services
APPLICATION FIELDS
• Precision Injection Molding
• Die Casting
• Metallurgy & Foundry
• New Energy
FAQ
Q: How many different types of products does your company manufacture?
A: Our product range covers hydraulic pumps (A4VSO series, PGX internal gear pumps, A10VSO series, etc.), hydraulic valves (4WRZE proportional directional valves, directional control valves, relief valves, etc.), hydraulic motors, and other hydraulic components-over 500 standard models in total. We have strong OEM/ODM advantages; just provide your product samples or technical requirements, and we will develop and manufacture accordingly.
Q: Which payment methods can you accept?
A: We accept T/T (Telegraphic Transfer), Western Union, PayPal, and L/C (Letter of Credit) etc. We can also adopt other convenient and secure payment terms as per mutual agreement.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air, or by express (DHL, FedEx, UPS, TNT, etc.). For large-volume orders, sea shipping is recommended for cost savings; for urgent orders, air or express shipping is available to meet your time requirements.
Q: Where is your factory located?
A: Our factory is located in Building 3, Shunde Science and Technology Innovation Center, Shunde District, Foshan City, Guangdong Province, China.
Q: Why Choose Bokin?
A: Bokin has an experienced team with more than 20 years' experience in the hydraulic industry, focusing on product R&D, production, and after-sales service. We also act as a buying office for overseas customers in China, providing one-stop hydraulic procurement solutions. Our core advantages include independent IP rights for proportional valves, monthly output of over 10,000 proportional valves, and long-term cooperation with well-known brands such as Rexroth, Parker, and Atos.
Q: Quality Control
We have professional QC personnel stationed on the production lines to conduct full-process inspection. All products must pass 100% inspection before delivery. We implement inline inspection and final inspection: 1. All raw materials are checked upon arrival at the factory to ensure compliance with technical standards. 2. All components, logos, and technical details are inspected during the production process. 3. All packaging details are verified during production to avoid damage during transportation. 4. Comprehensive inspection of product quality and packaging is carried out before final delivery.
Q: If I don't know what kind of product I need, what should I do?
A: Just take it easy. You only need to provide us with your specific application scenarios, working pressure, flow requirements, installation space, and other relevant information. We can recommend the most suitable product model for you, or provide our electronic catalog for your reference-you just need to tell us the selected model number.
Q: What is your main market?
A: Our main markets include Europe, North America, South America, Australia, the Middle East, Southeast Asia, and Africa. Our products have been exported to over 50 countries and regions worldwide.
Q: Can I mix different styles/models in a single order?
A: Yes, you can mix different models in one order as long as each model meets the minimum order quantity requirement (usually 1 set per model). Please list the models and quantities clearly when placing the order.
Q: Payment Methods (Supplementary)
We accept T/T (Telegraphic Transfer), L/C (Letter of Credit), D/A (Documents against Acceptance), D/P (Documents against Payment), Western Union, and Alibaba Trade Assurance, etc.
